gabrielCAM® Pro Extreme
Rugged Enclosure Resilient to the Harshest of Climates
gabrielCAM® Pro Extreme
£2650 (Ex Vat)
When conditions get tough, the gabrielCAM® Pro Extreme gets going. Engineered for the harshest environments on the planet (Currently Capturing in the Antarctic!), this camera system features a rugged, rim-moulded IP66 housing that offers superior protection against extreme temperatures, moisture, and dust.
Building on the proven technology of the Pro model, the Extreme adds enhanced climate resilience, making it the ideal choice for projects in desert heat, arctic cold, or coastal storms. It maintains the same high-quality DSLR imaging capabilities, ensuring your footage is uncompromisingly clear.
Equipped with advanced heating and cooling systems, the Pro Extreme ensures optimal operation in temperatures ranging from -10°C to +50°C. It is the ultimate solution for mission-critical monitoring where failure is not an option.
enclosure
| Weight | 6.27kg |
| Housing | Plastic rim-moulded IP66 rated housing, fitted with etched foil glass heating element |
| Dimensions | 535.5mm x 220mm x 225mm (L x W x H) |
| Weatherproof | IP66 - Extreme climate resistant to both sun and snow. Operating temperature: -10 / +50 °C |
module
| Storage | 128GB on-board storage |
| Battery | 13.4Ah capacity, 96Wh lithium-ion gabrielCAM® battery pack (fully removable) |
| Power | Either 12V or 24V IP-66 rated PSU (AC rated 100-240V). Supplied with Type G plug. Other connectors available. |

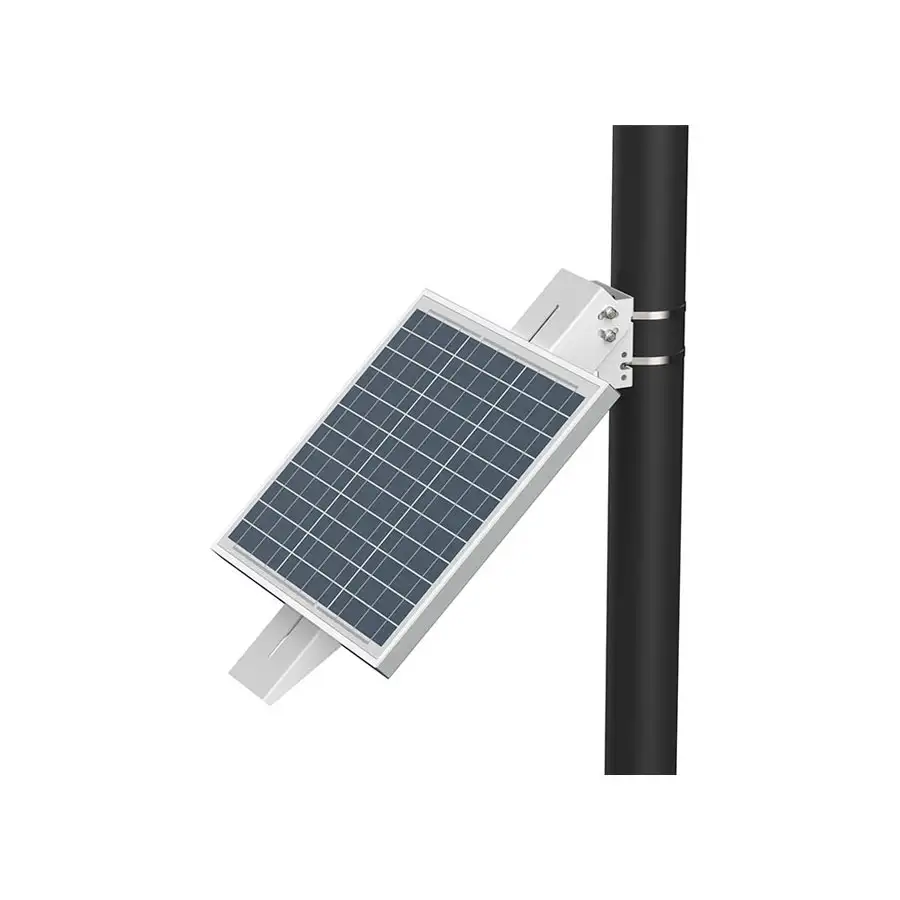

| Solar | Supplied with either 30W or 50W solar panel mounting pack |
| Connectivity | 4G-enabled LTE module |
| Location Awareness | GPS and LTE (4G) |
| Remote Update | Update control module and modem over LTE (4G) or LAN (ethernet) remotely, from anywhere |
- gabrielCAM® Pro Extreme Rugged Housing (IP66)
- gabrielCAM® Engine Control Module
- 12v / 24v Power Supply Unit
- High Gain Antenna
- 128GB On-board Storage
- Wall Mounting Bracket
- Tech Support Package
- Mains Power Adapter for Camera
- Externally Heated Glass
gabrielCAM® Pro Extreme Features
Remote Diagnostics
Keep your cameras running smoothly when every moment counts.
Professional-Grade Lens & Sensor
Capture razor-sharp, high-resolution imagery every time.
Independent Solar Power & Ultra-Low Power Mode
Reliable power—even through the gloomiest weather.
Removable Lithium-ion Battery
96Wh high capacity. Fully removable for flexibility.
110v & 240v Compatibility
Works with universal site power standards.

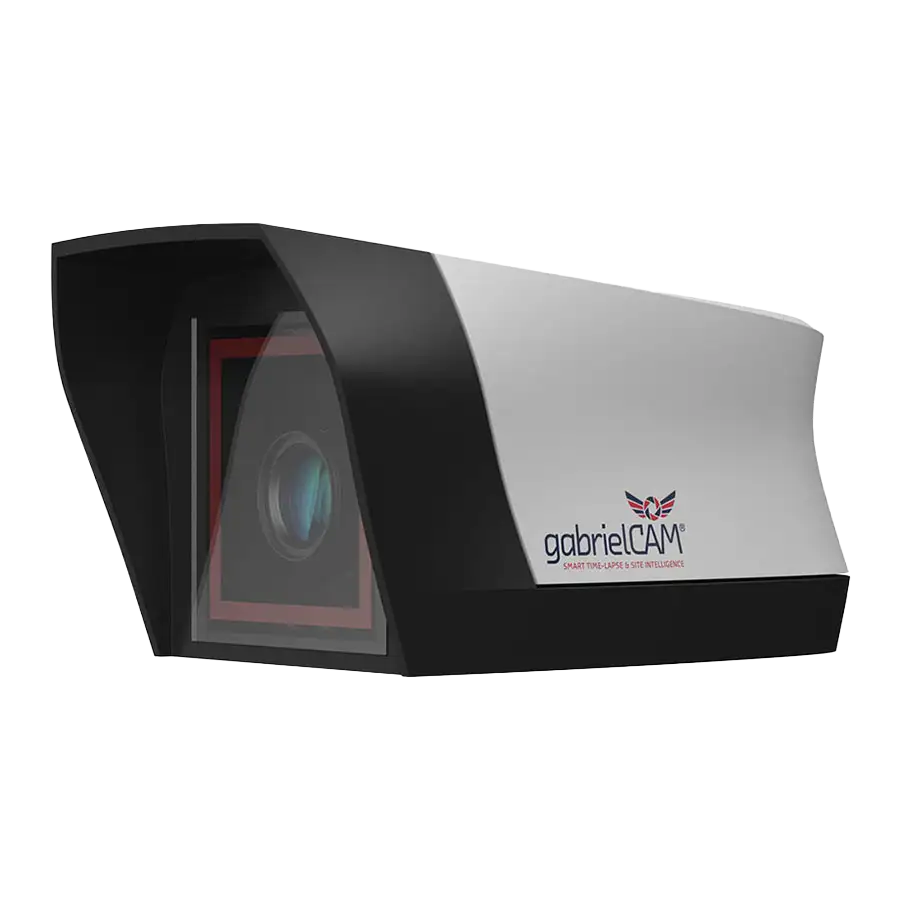

IP rated gabrielCAM® Pro Extreme Enclosure
Heavy-duty ruggedised housing built for the most demanding climate conditions.

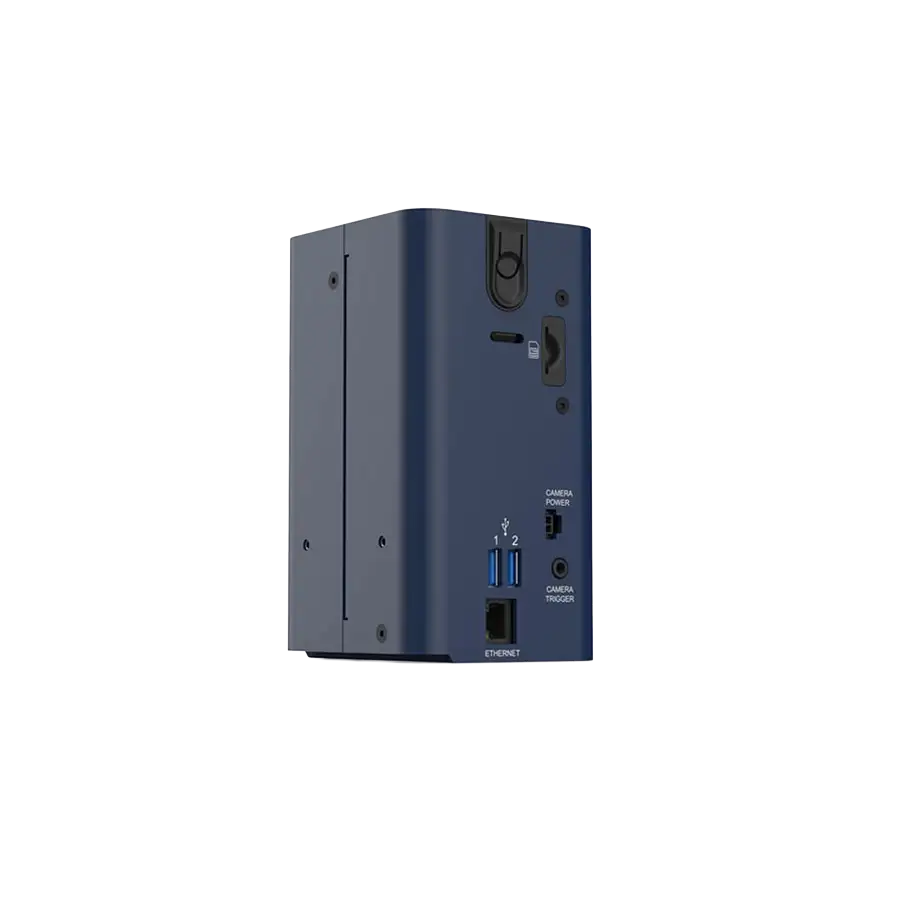

gabrielCAM® Engine (Control Module)
The brain of the operation, managing power, scheduling, and connectivity with efficiency.
12v / 24v Power Supply Unit
High Gain 4G Antenna
4G (LTE) Cellular — SIM & eSIM
Reliable connectivity with physical SIM & eSIM support.
Storage included
128GB on-board storage
Externally Heated Glass
Keeps the outer glass clear in wet and humid conditions. Etched foil heater actively removes surface moisture to preserve image clarity.
Extreme Climate Protection
Rim-moulded thermal isolation reduces heat transfer, allowing stable operation across severe temperature extremes.

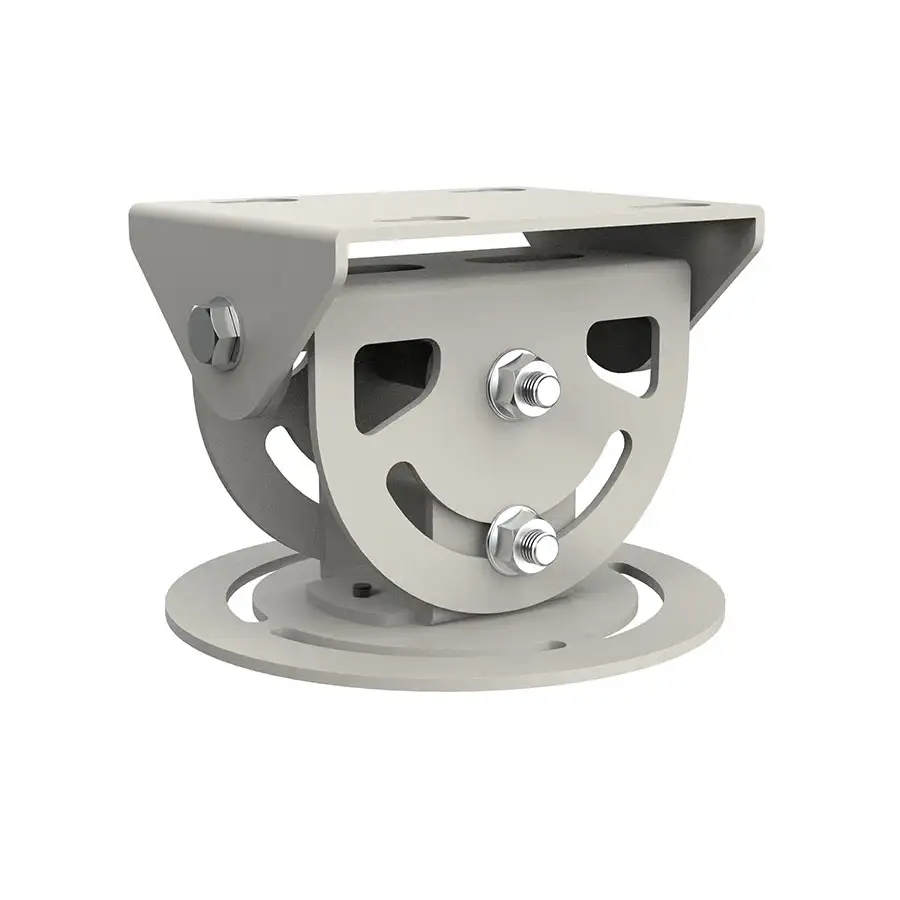

Tilt and Swivel Head
Wall Bracket
Tech Support Package
Direct access to our UK-based support team for installation and troubleshooting assistance.
